Commercial & Industrial Sound Insulation

Acoustiblok In The Field

Acoustiblok In The Field

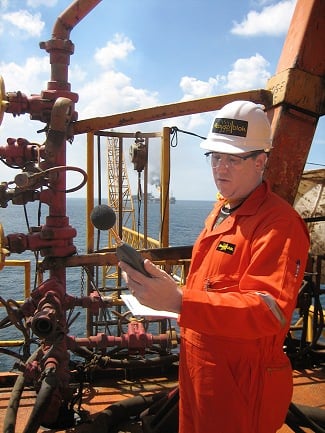

Acoustiblok Inc. recently performed an acoustical assessment of offshore oil platforms at the request of a Fortune 100 oil company.  Extremely high noise levels have become a great concern regarding health and safety of workers in this industry.  The Acoustiblok All Weather Sound Panel will no doubt be part of our recommendation as well as mechanical vibration isolation. Acoustiblok is using the new Cadna-A Acoustical Prediction software in conjunction within field measurements to develop solutions to these Acoustical problems.

An oil platform is one of the most hostile environments on Earth, with corrosive salt spray, high winds, extremes of hot and cold, and of course petrochemicals and solvents - and any exposed material that is easily damaged by impact will not last long. Designed for harsh environments and industrial applications, Acoustiblok All Weather Sound Panels are the ideal solution for oil platform noise control.





The Wheelabrator

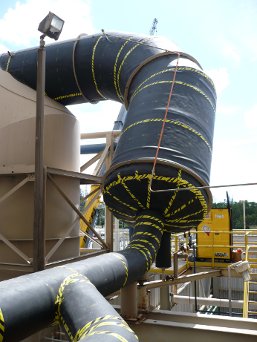

Noisy old Wheelabrator Quiet new Wheelabrator

With a working platform 60’ in the air, steam heating the pipes in excess of 350 degrees and the noise so loud that workers could not be heard, Acoustiblok was asked for suggestions. We suggested the use of our new high temperature Thermablok 1709 (rated to 1200 degrees F).

The pipes were first wrapped with insulation and then the entire package was wrapped with Acoustiblok. All the seams were secured with our “Iron Grip” Acoustigrip Tape. Workers said it was the quietest it had been in their 12 year history. Before and after sound reading showed an amazing reduction of 18 dB (a human ear perceived reduction of almost 70%). This success became even more amazing when the plant manager told us that the factory was running at nearly 50% greater capacity (creating more noise) than when the original reading were taken. So Broward County Florida is one more spot on the earth that is quieter because of Acoustiblok

Get the full story here [PDF].


Examples of Acoustiblok™ Industrial Installations

Bulet GE Power Generator Rooms
Bulet CBS Voice Booth
Bulet Union Pacific Railroad diesel shop
Bulet United States Air Force bases
Bulet Hotels in America, Central America and the Caribbean
Bulet Hospital rooms, clinics and labs
Bulet Mobil hearing test labs
Bulet Recording studios
Bulet Racecar testing garages
Bulet Industrial wood shops
Bulet Mills
Bulet Metal Fabricating plants
Bulet High Rise office buildings
Bulet Shopping Centers
Bulet Condo, Townhouse and Apartment complexes






Commercial Building and Office Installations

Acoustiblok® produces master rolls of 350 feet that cover 1,575 square feet and weigh 1600 lbs. The rolls have a diameter of 24.5" and are shipped 2 rolls per pallet.

::: Reference Photos:::
Commercial Building



Start Over



Heavy Industry Applications

Attenuation of power generators presents quite a challenge. Acoustiblok® produces a 32-ounce per square foot product targeted primarily for the industrial client. Not only are the db readings very high with generators, but also the frequencies are often mid range demanding a very dense material for sound and vibration attenuation. Often we suggest a panel of two layers of 32 oz Acoustiblok® with 2-3 inches of dead air insulation space between the layers. These panels have been very effective in reducing the db numbers to desired levels.

The 32-ounce rolls are 100 ft in length, weigh 900 lbs and have a diameter of 20 inches.

generator sound insulation

Acoustiblok® Values for 32 oz.

Parameter

  Typical Value

Tensile MD

  400 psi

Tensile AMD

  430 psi

Elongation MD

  155%

Elongation AMD

  190%

Tear MD

  77 psi

Tear AMD

  90 psi

Specific Gravity

  1.91

Gauge

  .200

Shrinkage AMD

  +1.9%

Shrinkage MD

  -3.7%

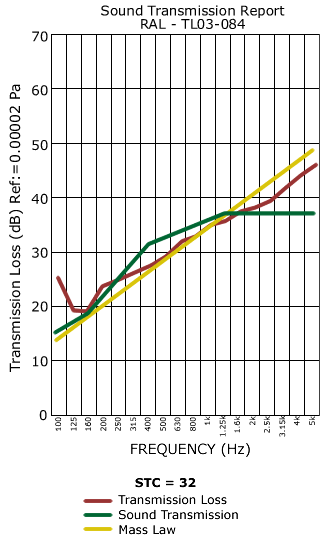

Acoustiblok® Values for 32 oz.


Note the unique characteristic of Acoustiblok as it actually dramatically increases sound blocking at  the problematic low frequencies.


Sound Transmission Class 32
Riverbank Acoustical Laboratories (RAL™)
Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions ASTME 90-02/NVLAP 08/P06

CLIENT: Acoustiblok
DESIGNATION: Acoustiblok 32 (32 oz. per square foot)

FREQ.
(Hz)
T.L.
(dB)
UNC.
(dB)
96%CL
DEF.
(dB)
<CONT
100
24
0.99
125
19
0.68
160
19
0.70
200
22
0.47
250
23
0.38
2
315
25
0.21
3
400
27
0.27
4
500
28
0.25
4
630
30
0.20
3
800
31
0.18
3
1k
33
0.15
2
1.25k
34
0.14
2
1.6k
36
0.12
2k
38
0.13
2.5k
39
0.12
3.15k
41
0.09
4k
42
0.09
5k
44
0.09







The words "soundproofing" (100% Sound elimination), which is impossible to achieve with Acoustiblok material or any other product.
The entire materials provided herein are for reference only Acoustiblok reserves the right to modify or revise the content at any time without prior notice.
